By Lewis Potter
Monday, 14 May 2012
With its archaic terms and regional differences, the gunsmith’s language is a complex one. Lewis Potter looks at the inner workings of a shotgun.
The other day, someone with many years’ shooting experience came into the workshop and asked what the difference between a boxlock and sidelock shotgun was.
It was easy to pick up a couple of guns and show him, but it soon became apparent that the descriptive terms I was using were like a foreign language to him.
Steeped in tradition, the language of the gunmaker is very complicated as, while there are well-established terms, there are also regional differences, especially between Birmingham and London and sometimes even between makers.
A VICTORIAN LANGUAGE
Many of the descriptive words still used in the gun trade are firmly rooted in the Victorian era, such as “turnscrew” or what everyone else calls a screwdriver.
To the rest of the world, the “striker” is a firing pin; “pins” are screws; and in London a “tumbler” in a sidelock is a “hammer” in Birmingham.
Just to make it a bit more interesting, with a hammergun, the tumbler and hammer are separate parts.
Another example of the different terminology used is the projecting part of the fore-end iron to which the fore-end wood is fitted.
Usually described as the “steel” in London, it is a “stale” in Birmingham, which probably came about as a matter of pronunciation.
Stale (as in broom stale) is how a born-and-bred Brummie would pronounce steel, or at least that is how it would sound to an outsider.
Many terms would have been passed on by word of mouth which could have added to the regional differences.
THE BASIC DOUBLE GUN
“Shotgun action” is a brief description of how a gun works, such as hinged break-open action.
This is not as odd as it might at first seem when one considers that “bolt action” describes a method of operation while the main component parts are actually the bolt and receiver.
Similarly, with break-open shotguns the main steel parts are the barrels, action body (or just body) and fore-end iron.
However, the use of “action” when relating to shotguns is often extended to include the type of lockwork layout, such as boxlock or trigger-plate action.
THE FORE-END IRON
The fore-end iron has a knuckle that fits on the front of the action body bar.
The long steel, or stale, secures not only the fore-end wood but is also important in having some sort of catch to hold the fore-end in place.
Most of the make-up of a sidelock is the same as a boxlock; the main difference is the lockwork fitted to plates on each side making it a direct descendant of the hammergun, but with the hammers inside.
A sidelock can be a bar lock, where the front of the lockplate carrying the mainspring fits into a cut-out in the bar of the action body.
There are also bar-lock sidelocks with rear acting mainsprings and back-action sidelocks where the locks are fitted behind the action body.
The barrels have ribs: in the case of a side-by-side, top and bottom ribs; on an over-and-under, top and side ribs.
The small catch that holds the fore-end in place is a fore-end loop, though it bears no resemblance to any such thing, but is a word left over from muzzle-loader days when it did look more like a loop.
Underneath the barrels are the lumps, usually two on a side-by-side.
The front one forms the hook which hinges on the cross-pin and both this and the rear lump have cut-outs named bites, into which the locking bolt engages to hold the gun shut.
Some guns have a third bite in a doll’s-head extension to the barrels.
The shape of the lumps is important in holding the barrels firmly against the standing breech and action bar flats.
Built properly, when locked shut, there should be little or no load taken on the cross-pin.
Some over-unders have bifurcated lumps, meaning one each side, and hinge on trunions or hinge discs.
THE TRIGGER-PLATE GUN
A trigger-plate is the less common type of side-by-side, but many over-unders are a variation on this design.
The true trigger-plate type has the lockwork assembled on a detachable trigger-plate and a modern example of this is the Beretta.
Many other over-unders are of modified trigger-plate design: the lock mechanism is split between the triggerplate and top-strap and therefore qualify as a type of boxlock, especially where the action body, or frame in modern parlance, is machined in one piece.
THE BOXLOCK ACTION
The boxlock incorporates the basic features of any break-open shotgun. The lockwork is built into the action body, which is why, in its early days, it was sometimes called a body lock.
The major parts of the lockwork consist of the cocking dogs or cocking arms, mainsprings, hammers, or dog-tooth strikers if the firing pin is a fixed part of the hammer, and the sears.
The sears trip the hammers when disengaged from the bent or hammer notch by pulling the trigger.

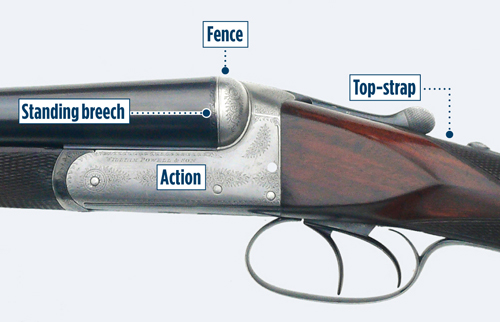

The action body sports a bar, standing breech, fences, top-strap and the cross-pin on which the barrels pivot.
HOW IT WORKS
The front of the cocking dog protruding from the knuckle of the action bar engages with the knuckle of the fore-end iron.
On pushing the top-lever to the right the arm on the spindle draws the locking bolt rearwards, releasing it from the bites and allowing the barrels to open.
As the gun is opened the cocking dogs rotate with the fore-end knuckle forcing the front leg of the striker (or hammer), upwards to compress the mainspring.
Near full compression the sear engages with the bent holding the striker (hammer) in the cocked position as the gun is closed.
When the trigger is squeezed, it lifts the sear arm moving it out of the bent and releasing the striker (hammer) to fire the cartridge.
This is only a brief excursion into the world of the gunmaker.
The names of some parts have not altered for hundreds of years, even though the parts may now bear little resemblance to the description.
It is amazing that so much has hung on into the 21st century — truly part of a glorious heritage and something to be treasured.
