Enlarged field of view: it’s just one of the features that is going to make the new ZEISS DTI 3/25 VERY sought-after

Stalkers and hunters know – and have been frequently frustrated by – the difficulties of hunting at night in woodland.

The ZEISS DTI 3/25 thermal imaging camera is set to change all that by offering some long-needed features. Here’s why it’s going to be welcomed.

1. It permits an enlarged field of view of 26 metres at a range of 100 metres, with a focal length of 25 mm.
2. It gives a complete overview in total darkness, either from a high seat or the bait site.
3. Users will be able to detect all heat sources, even at close range.
4. The camera works silently and unobtrusively.
5. Easily identifiable controls allow swift, accurate use
6. Both left-and right-handed stalkers will find operation uncomplicated, even wearing gloves and in the dark
7. The camera has been designed for easy-one handed operation
8. Sensor, electronics, screen and eyepiece work seamlessly together
9. Switching from maximum overview to higher magnification is straightforward using the digital zoom with increments of 0.5x
10. The fine, gradual zoom picks out even small details
11. The new DTI 3/25 and the popular DTI 3/35 thermal imaging cameras can be connected to the ZEISS Hunting app to manage and share photos, videos and livestream hunting.
12. Latest firmware is installed, unlocking features such as improved focusing with contrast enhancement and a focus frame in picture-in-picture mode.
13. The LED screen can be switched off manually to assist camouflage.
14. The Contrast Boost feature increases contrast between light and dark at the edges, countering conditions of fog and high humidity.
15. The high resolution display gives images with exact detail enabling reliable target identification, even in total darkness.
16. A carrying strap allows the camera to be worn inconspicuously.

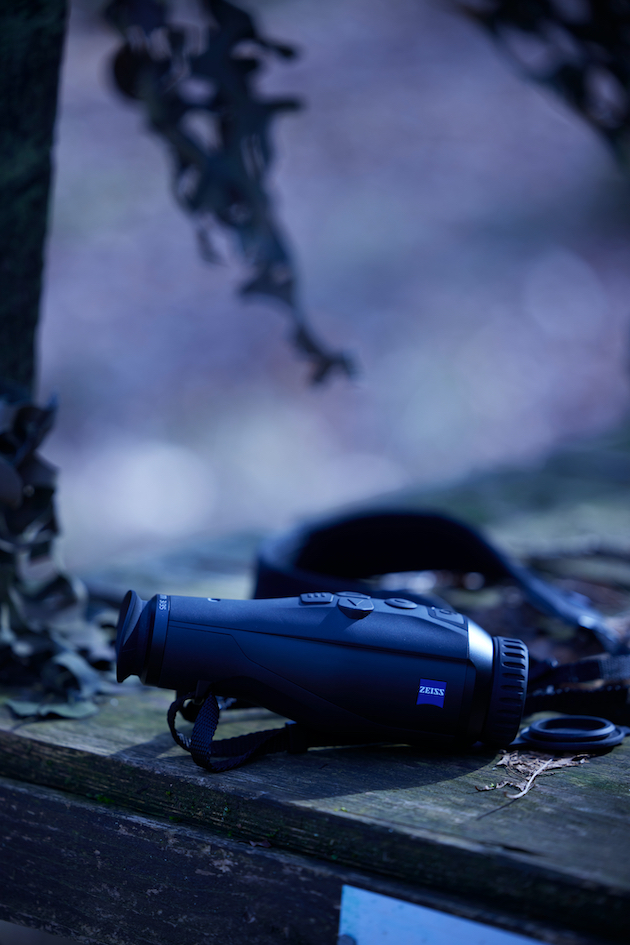

The new ZEISS 3/25 is particularly suited for use in wooded areas

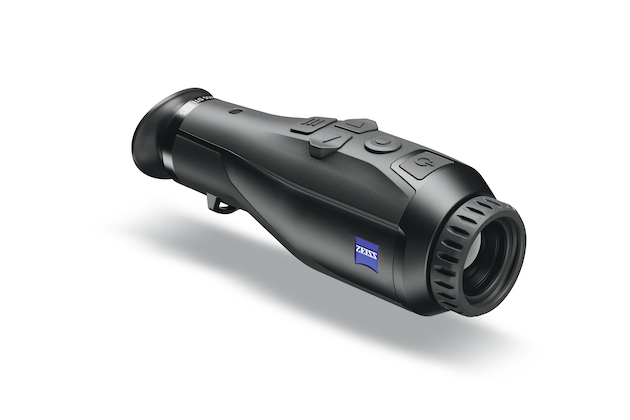

ZEISS DTI 3/25 Technical Specifications

Performance

• Focal Length 25 mm / F1.0
• Eyepiece field of view in ° (subjective field of view) diagonal: 30,25 °
• Lens field of view in m at 100 m horizontal: 26 m
• Lens side field of view in ° (horizontal × vertical) 15° × 11° (diagonal 13,3 °)
• Sensor resolution 384 × 288 px
• Sensor pixel pitch 17 μm
• Image frequency 50 Hz
• Display resolution 1.280 × 960 px
• Display type LCOS
• Range ~ 880m
• Optical magnification 1,8 x
• Maximum digital zoom 4 x
• Zoom increments In 0,5x increments from 1,0 × – 4,0 ×
• Lens type Germanium

Ergonomically designed controls are easy to operate swiftly, even wearing gloves

Features

• Battery Lithium-ion
• Battery run time 10 h
• Internal storage 15 GB
• Livestream function (Video & Photo) +
• External power supply 5 V/3 A, 9 V/2 A, 12 V/1,5 A (USB)
• Interfaces USB: charging + data transfer
• WiFi standard IEEE 802.11b/g/n
• WiFi frequency 2,4 GHz
• WLAN: data transfer

Four different colour modes available when using the ZEISS DTI/25

Physical

• Ingress protection rating IP 66 (Protected against heavy rain)
• Operating temperature range –10 °C bis +40 °C
• Length x width x height 187 mm × 60 mm × 65 mm
• Weight 410 g

Visit ZEISS for more information on the DTI 3/25.
